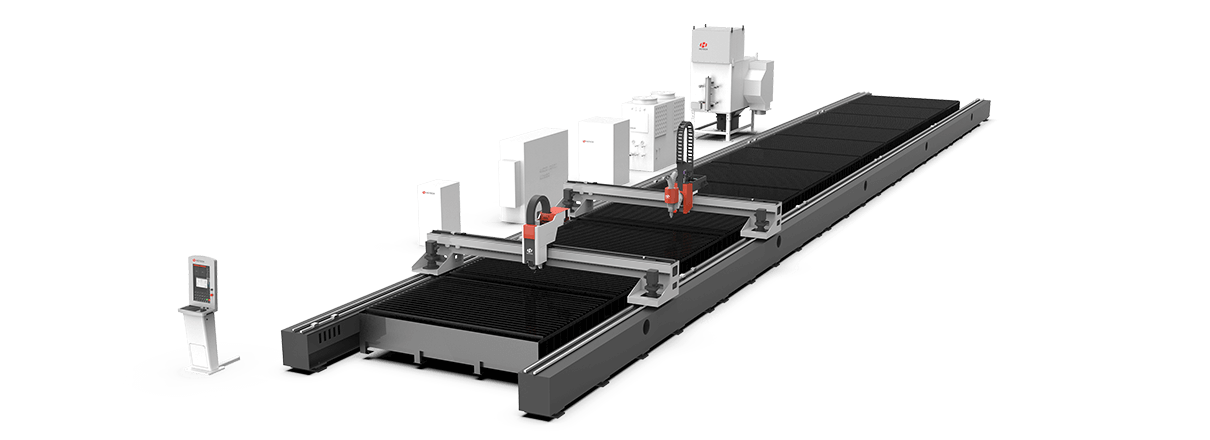

Large-format 3D Five-axis Cutting 1kW-12kW WALC Series

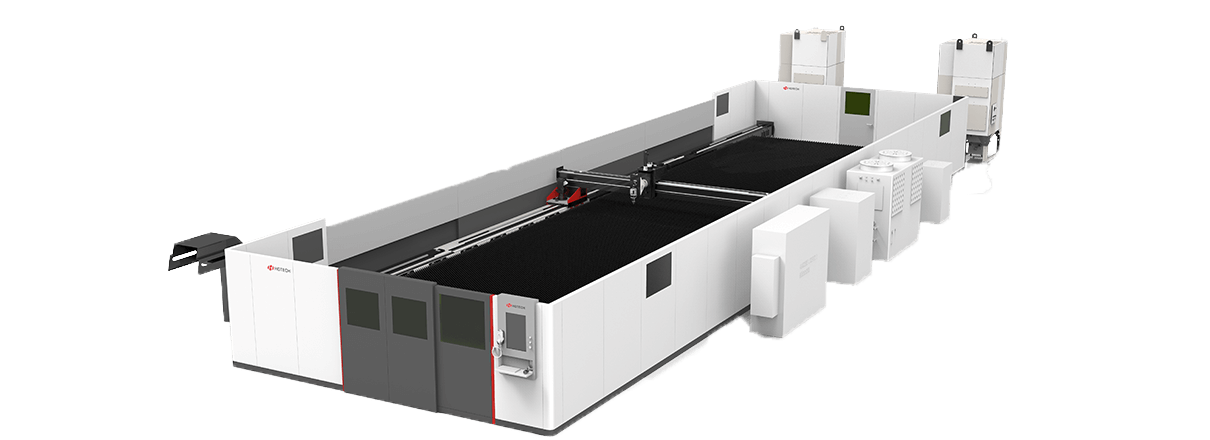

Lightweight design Customizable size Integrated differentiated dust removal Box beam modular bed Segmented design
Interesat de acest produs?
Descriere Detaliata
WALC and bevel laser cutting product series have the characteristics of ultra-high power, ultra-large-format (processing format can be customized) high-speed, high-precision, high-stability, and can be used for bevel cutting. This product has good openness and is easy to access the production line and production management system. It is widely used in construction machinery, ships and automobile manufacturing, bridge steel towers and other industries to solve the needs of one-time cutting and bevel cutting of super large plates and workpieces.
Product Benefits
Lighweight beam, high efficiency work
With a maximum acceleration of 1G and a maximum speed of 80m/min in a single axis, the machine can achieve higher acceleration and speed.
Smooth and flat cutting surface,
Achieving any shape of bevel cutting at will
Reduce the process, allowing for a maximum 45-degree range of different shapes and bevel angles at one time. Reduce material waste and operating costs.
Energy saving and consumption reduction,
offering greater economic and environmental benefits.
Box beams are designed in a modular,segmented format to minimize material usage
Lightweight bed allows for easy installation and significant time savings

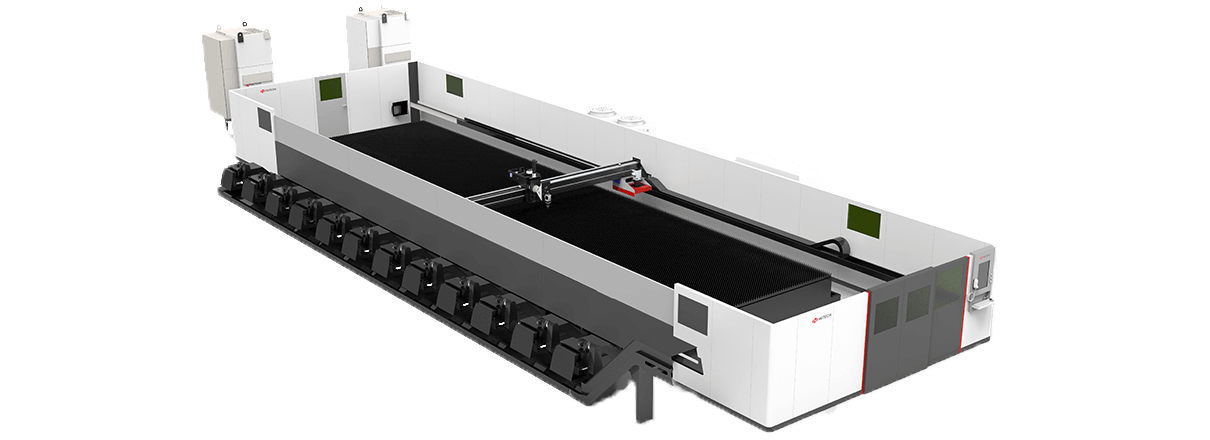

Integrated air extraction, more space-efficient setup and highly effective dust removal
Specificatii Tehnice
| MODEL | WALC 8030 | WALC 1235 | WALC 1830P | WALC 2535P |
|---|---|---|---|---|
| Laser Power | 6000 - 30000 W | 6000 - 30000 W | 6000 - 30000 W | 6000 - 30000 W |
| Control System | SIMENS 840D SL, FARLEY | SIMENS 840D SL, FARLEY | SIMENS 840D SL, FARLEY | SIMENS 840D SL, FARLEY |
| Vertical Cutting | Sheet metal: 2D cutting and marking | Sheet metal: 2D cutting and marking | Sheet metal: 2D cutting and marking | Sheet metal: 2D cutting and marking |
| Bevel Cutting | CS SS AL: V/Y/X/K bevel cutting within ±45 degrees | CS SS AL: V/Y/X/K bevel cutting within ±45 degrees | CS SS AL: V/Y/X/K bevel cutting within ±45 degrees | CS SS AL: V/Y/X/K bevel cutting within ±45 degrees |
| Processing Capability | ||||
| Cutting Thickness: CS(O2) | Vertically cut MAX: 60mm | Vertically cut MAX: 60mm | Vertically cut MAX: 60mm Bevel cutting MAX: 30mm | Vertically cut MAX: 60mm Bevel cutting MAX: 30mm |
| Cutting Thickness: SS(N2) | Vertically cut MAX: 60mm | Vertically cut MAX: 60mm | Vertically cut MAX: 60mm Bevel cutting MAX: 25mm | Vertically cut MAX: 60mm Bevel cutting MAX: 25mm |
| Cutting Thickness: AL(N2) | Vertically cut MAX: 60mm | Vertically cut MAX: 60mm | Vertically cut MAX: 60mm Bevel cutting MAX: 20mm | Vertically cut MAX: 60mm Bevel cutting MAX: 20mm |
| Processing Format And Working Range | ||||
| Processing Width | 8000 * 3000mm | 12000 * 3500mm | 18000 * 3000mm | 25000 * 3500mm |
| K-bevel Processing Width | NA | NA | 17000 * 2500mm | 24000 * 3000mm |
| Route of X-axis | 8100mm | 12100mm | 18100mm | 25100mm |
| Route of Y-axis | 3050mm | 3550mm | 3550mm | 3550mm |
| Route of Z-axis | 150mm | 150mm | 300mm | 300mm |
| Accuracy | ||||
| Positioning accuracy of X axis | 0.1mm/10m (≤10m), 0.2mm/full length | 0.1mm/10m (≤10m), 0.2mm/full length | 0.1mm/10m (≤10m), 0.2mm/full length | 0.1mm/10m (≤10m), 0.2mm/full length |
| Positioning accuracy of Y axis | 0.05mm | 0.05mm | 0.05mm | 0.05mm |
| Repeated Positioning accuracy of X axis | 0.05mm/10m (≤10m), 0.1mm/full length | 0.05mm/10m (≤10m), 0.1mm/full length | 0.05mm/10m (≤10m), 0.1mm/full length | 0.05mm/10m (≤10m), 0.1mm/full length |
| Positioning accuracy of X axis | 0.03mm | 0.03mm | 0.03mm | 0.03mm |
| Velocity | ||||
| Max Acceleration | 1G | 1G | 1G | 1G |
| X/Y Axis Max Positioning Speed | 60m/min | 60m/min | 60m/min | 60m/min |
| X/Y Axis Max Positioning Con-speed | 84m/min | 84m/min | 84m/min | 84m/min |
